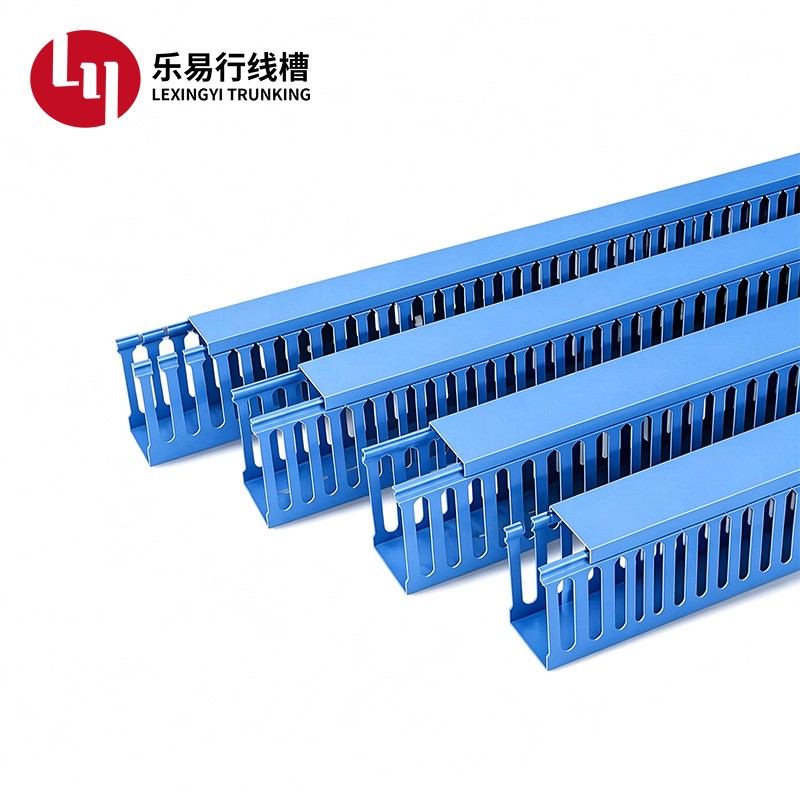

蓝色开口PVC配线槽

产品材质 Product Material

采用 PVC 材质制成，原料符合 RoHS 环保标准，无甲醛、重金属等有害物质、不助燃。
Manufactured from PVC material, the raw materials comply with RoHS environmental standards, free from harmful substances such as formaldehyde and heavy metals, and non-combustible.

产品颜色 Product colour

灰色、蓝色为主，标准长度为 2m，可提供非标定制。
Primarily grey and blue in colour, with a standard length of 2 metres. Custom lengths are available upon request.

产品结构 Product Structure

◆ 单槽款（整体式、底部和槽侧面设有出线孔）；
◆ 分隔款（内置 1 个独立隔层，可分离强电与弱电，避免信号干扰）；
◆ 工作温度：-20℃ ~80℃。
◆ Single-bay model (integrated design with cable outlets at the base and sides of the bay);
◆ Partitioned model (features one internal compartment to segregate high-voltage and low-voltage circuits, preventing signal interference);
◆ Operating temperature: -20° C to 80° C.

产品特征 Product Features

采用精密工艺挤出，槽体表面光滑无毛刺，边缘圆润不划手，内壁平整，减少线缆磨损，盖板与槽体咬合紧密，线槽设有安装孔，易安装，拆卸，行线槽不易断裂、变形、变色。
Manufactured using precision extrusion techniques, the cable tray features a smooth, burr-free surface with rounded edges that are safe to handle. Its internally smooth walls minimise cable abrasion, while the cover plate interlocks securely with the tray body. Equipped with installation holes, the tray facilitates straightforward fitting and removal. The cable tray exhibits resistance to fracture, deformation, and discolouration.

150 5897 8918 189 6891 6605 139 6897 8225

产品规格 (高*宽mm)	整箱米数 (米)	测量厚度 (加厚/标准)	产品规格 (高*宽mm)	整箱米数 (米)	测量厚度 (加厚/标准)
20*15	200	1.2/1.0	50*50	100	1.5/1.3
20*20	200	1.2/1.0	50*55	100	1.5/1.3
20*25	100	1.2/1.0	50*60	100	1.5/1.2
25*20	100	1.2/1.0	50*80	60	1.4
25*25	100	1.2/1.0	50*100	60	1.5
25*35	100	1.2/1.0	60*25	100	1.6/1.3
25*40	100	1.2/1.0	60*30	100	1.6/1.3
30*15	200	1.3/1.0	60*35	200	1.6/1.3
30*20	100	1.3/1.1	60*40	100	1.6/1.3
30*25	100	1.3/1.1	60*45	100	1.6/1.3
30*30	100	1.3/1.1	60*50	100	1.6/1.3
30*35	100	1.3/1.1	60*60	80	1.6/1.3
30*40	100	1.3/1.1	60*80	60	1.6/1.3
30*50	100	1.3/1.1	60*100	60	1.6
35*25	100	1.4/1.1	65*25	100	1.7/1.3
35*30	100	1.4/1.1	65*35	100	1.7/1.3
35*35	100	1.4/1.1	65*45	100	1.7/1.3
40*20	100	1.4/1.1	65*65	80	1.7/1.3
40*25	100	1.4/1.1	80*25	60	1.8/1.5
40*30	100	1.4/1.1	80*30	60	1.8/1.5
40*35	100	1.4/1.1	80*35	60	1.8/1.5
40*40	100	1.4/1.2	80*40	60	1.8/1.5
40*50	100	1.4/1.2	80*45	60	1.8/1.5
40*60	100	1.4/1.2	80*50	60	1.8/1.5
45*25	100	1.4/1.2	80*55	60	1.8/1.5
45*35	100	1.4/1.2	80*60	60	1.8/1.5
45*45	100	1.5/1.2	80*80	36	1.8/1.5
45*65	100	1.5/1.2	80*100	36	1.9
50*20	100	1.5/1.2	100*30	60	1.9
50*25	100	1.5/1.2	100*40	60	1.9
50*30	100	1.5/1.2	100*50	60	1.9
50*35	100	1.5/1.3	100*60	60	1.9
50*40	100	1.5/1.2	100*80	36	2.0
50*45	100	1.5/1.2	100*100	36	2.0
